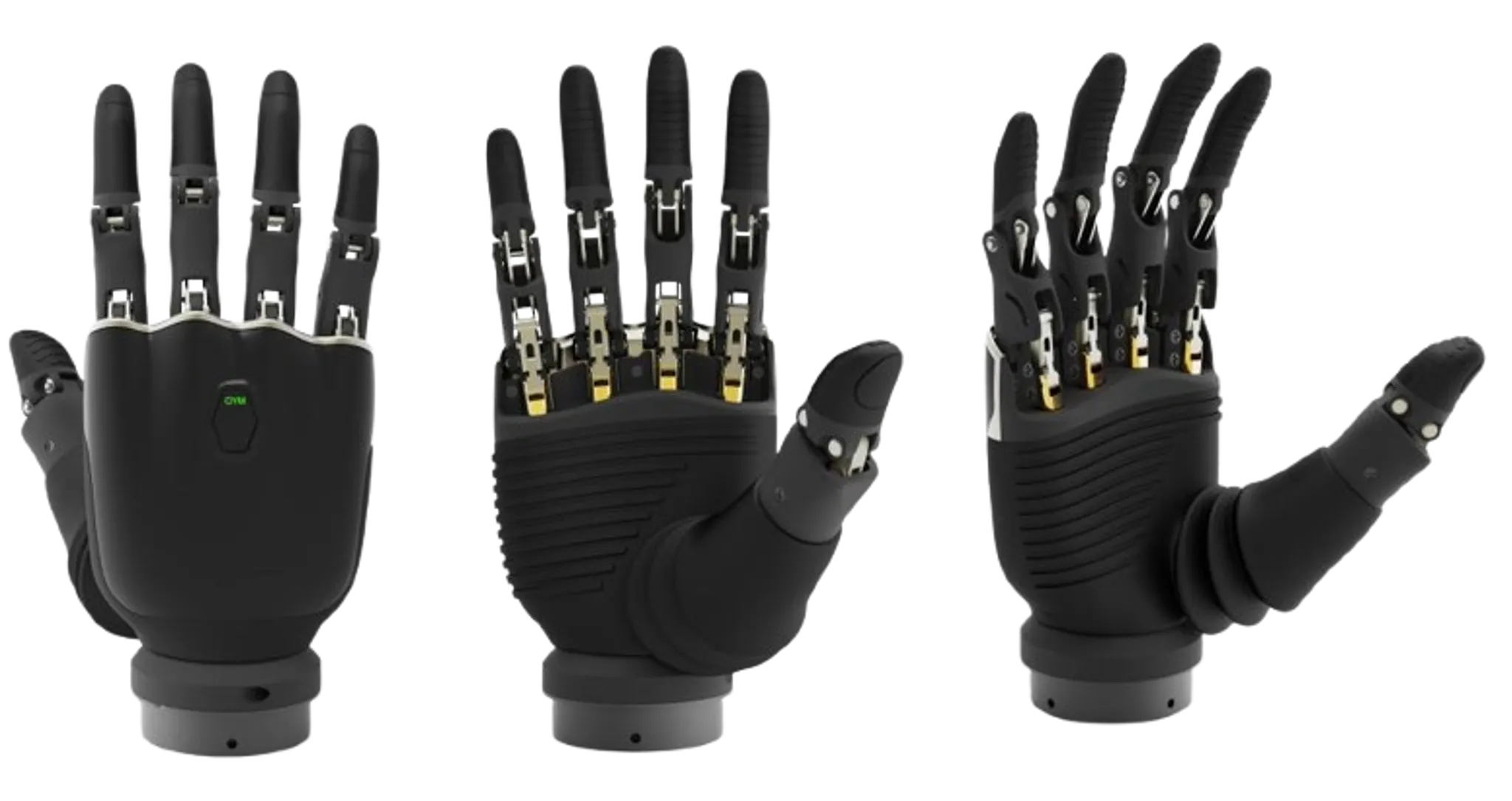

Lightweight myoelectric prosthetic hand (OhandLite)

경량형 근전도 전동 인공손(OhandLite)

Features

Weight: 363.5g
EMG prosthetic hand for upper-limb amputees
Artificial hand that perfectly mimics the structure and movement characteristics of the human hand

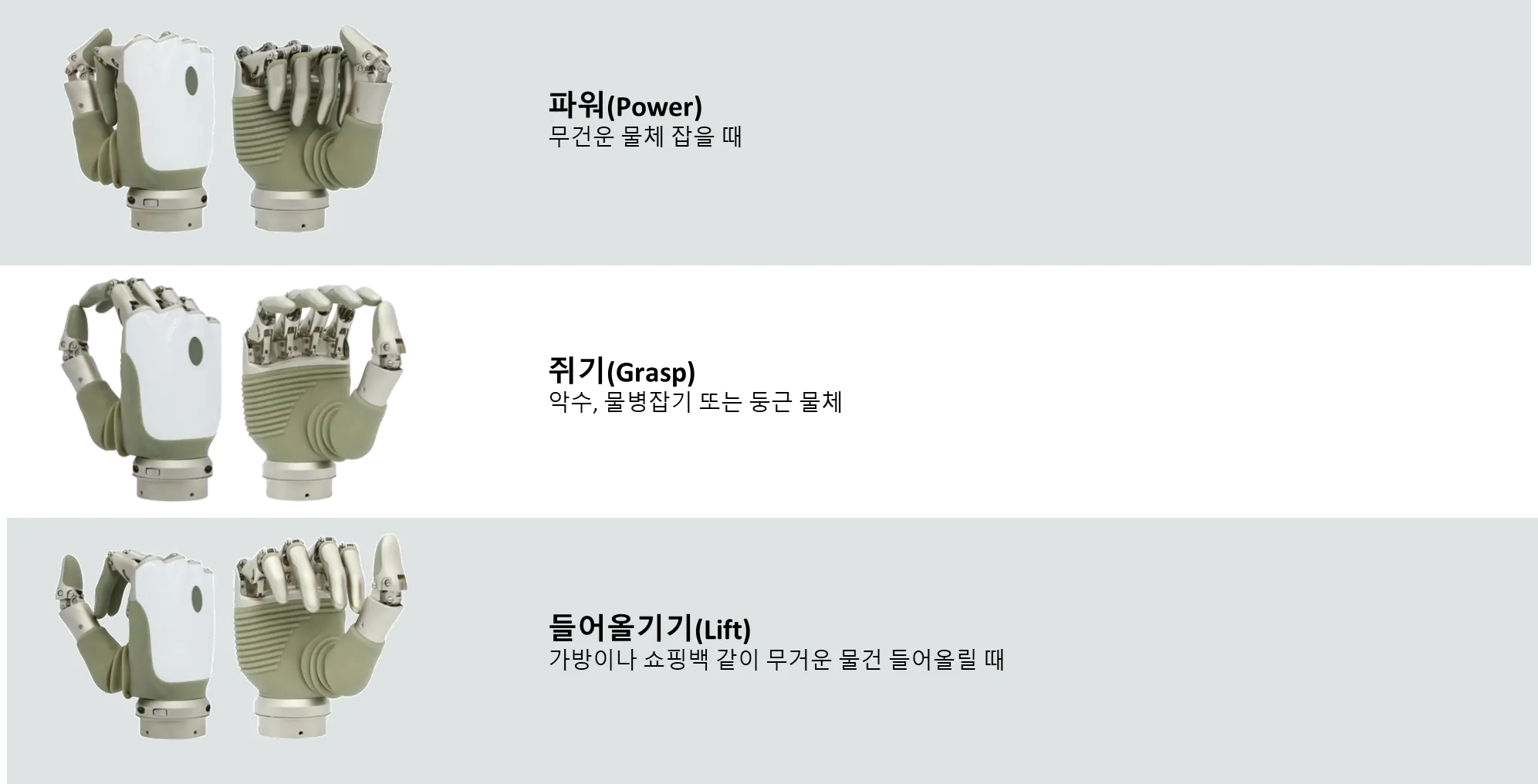

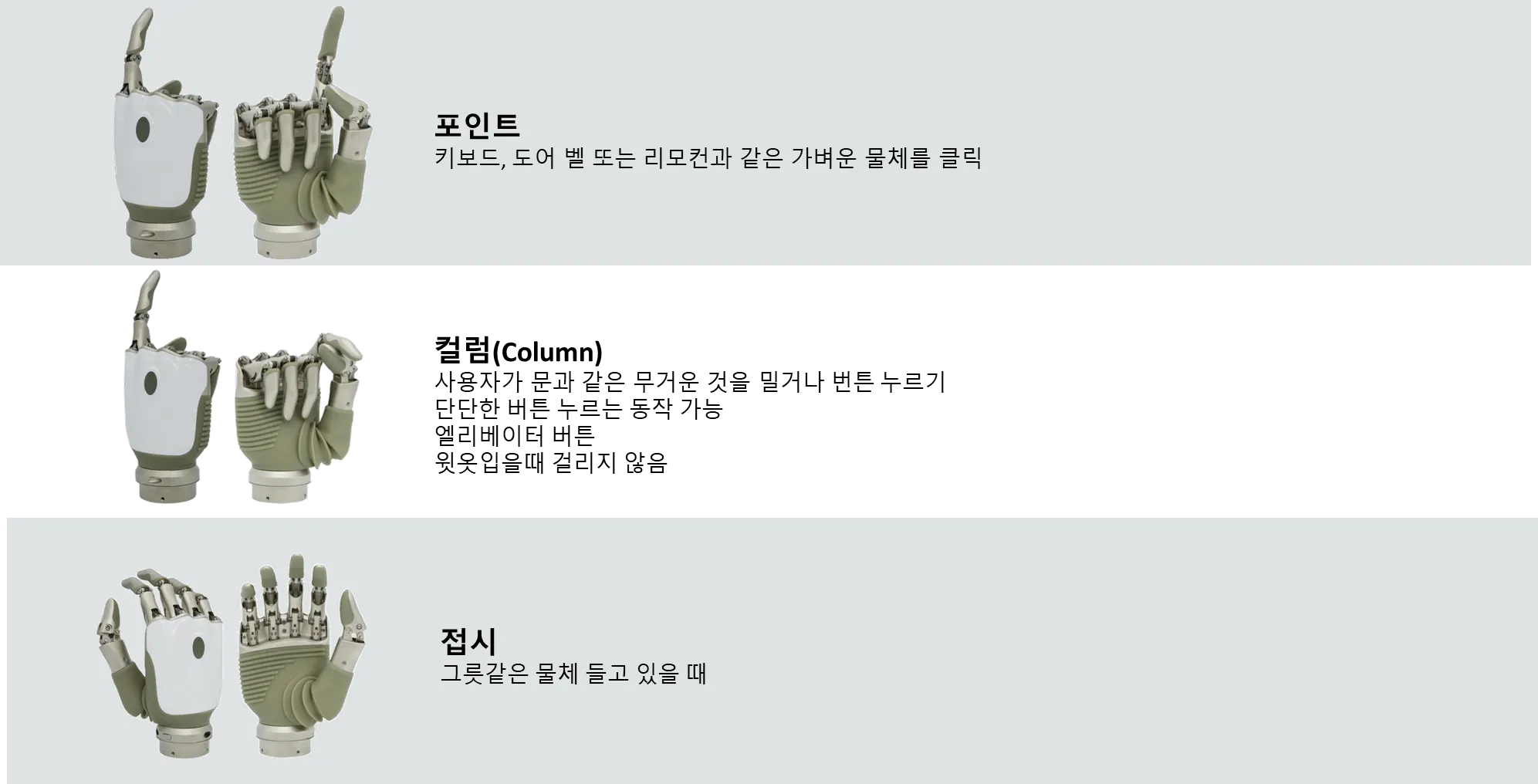

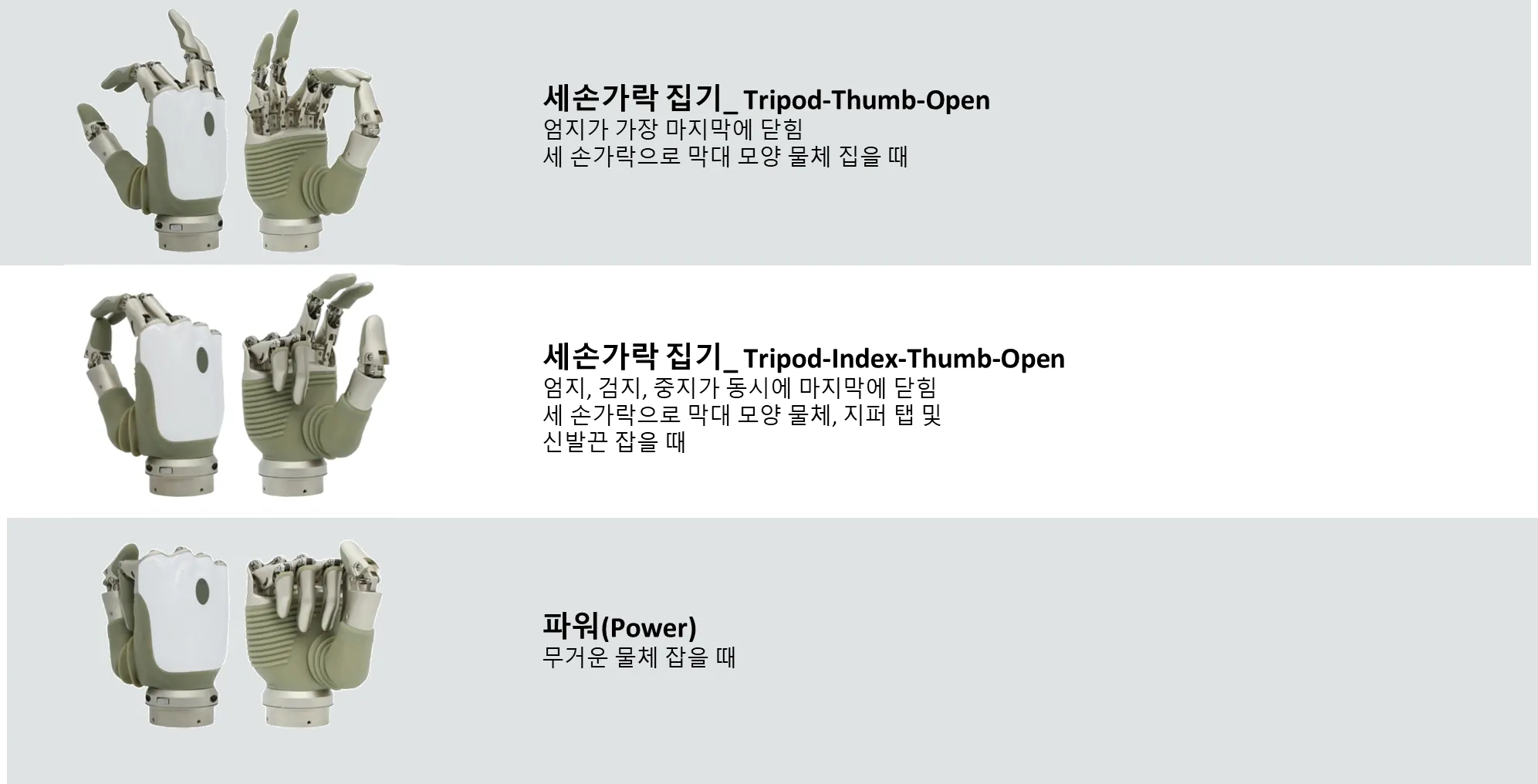

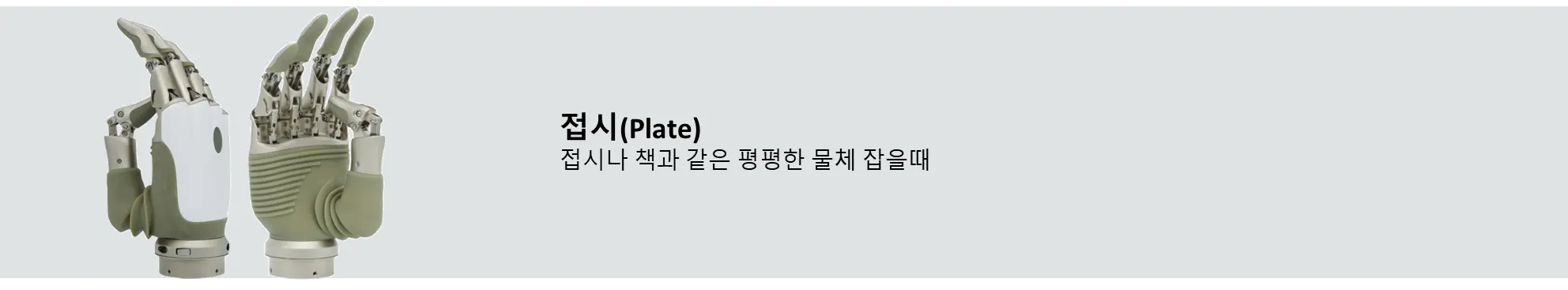

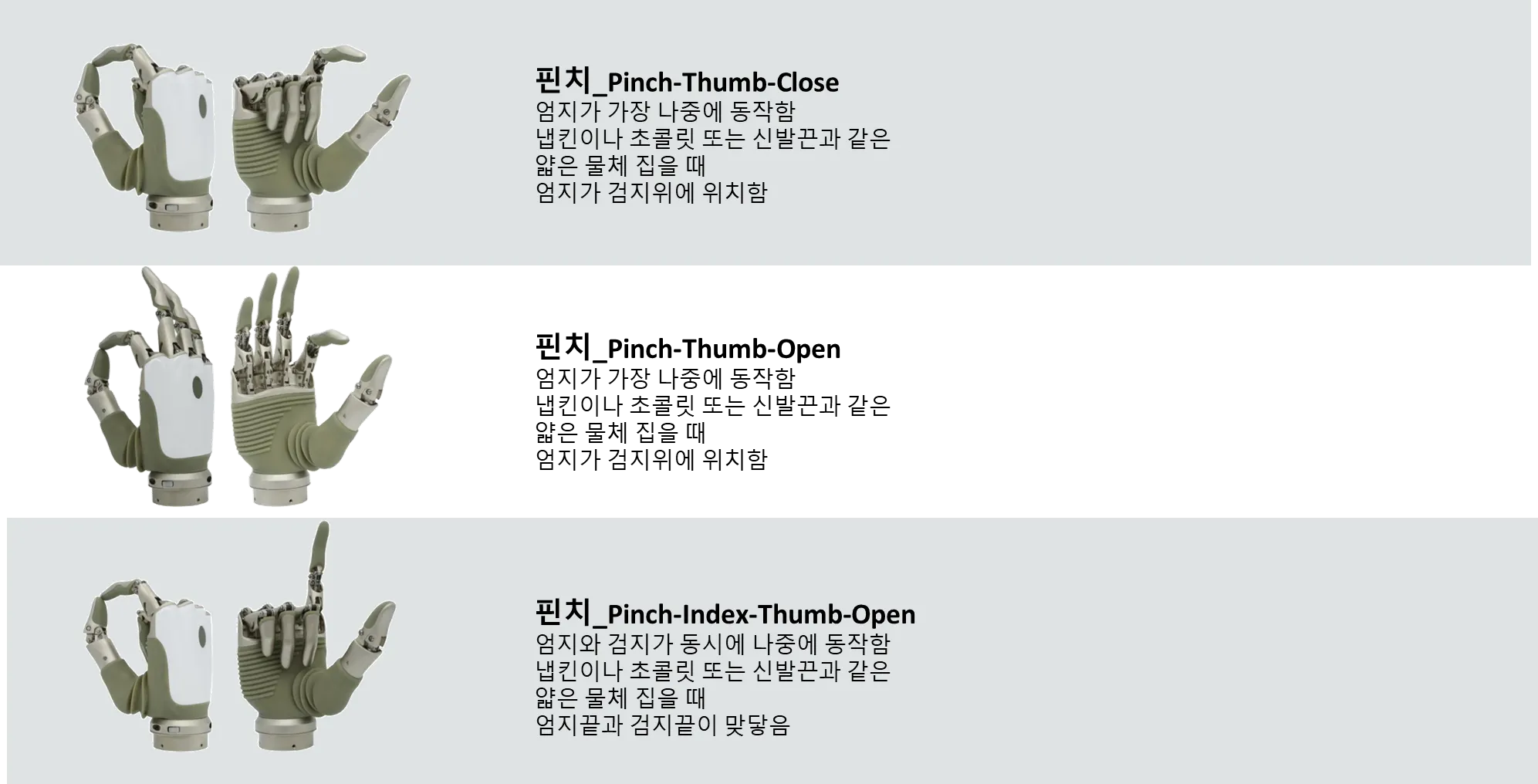

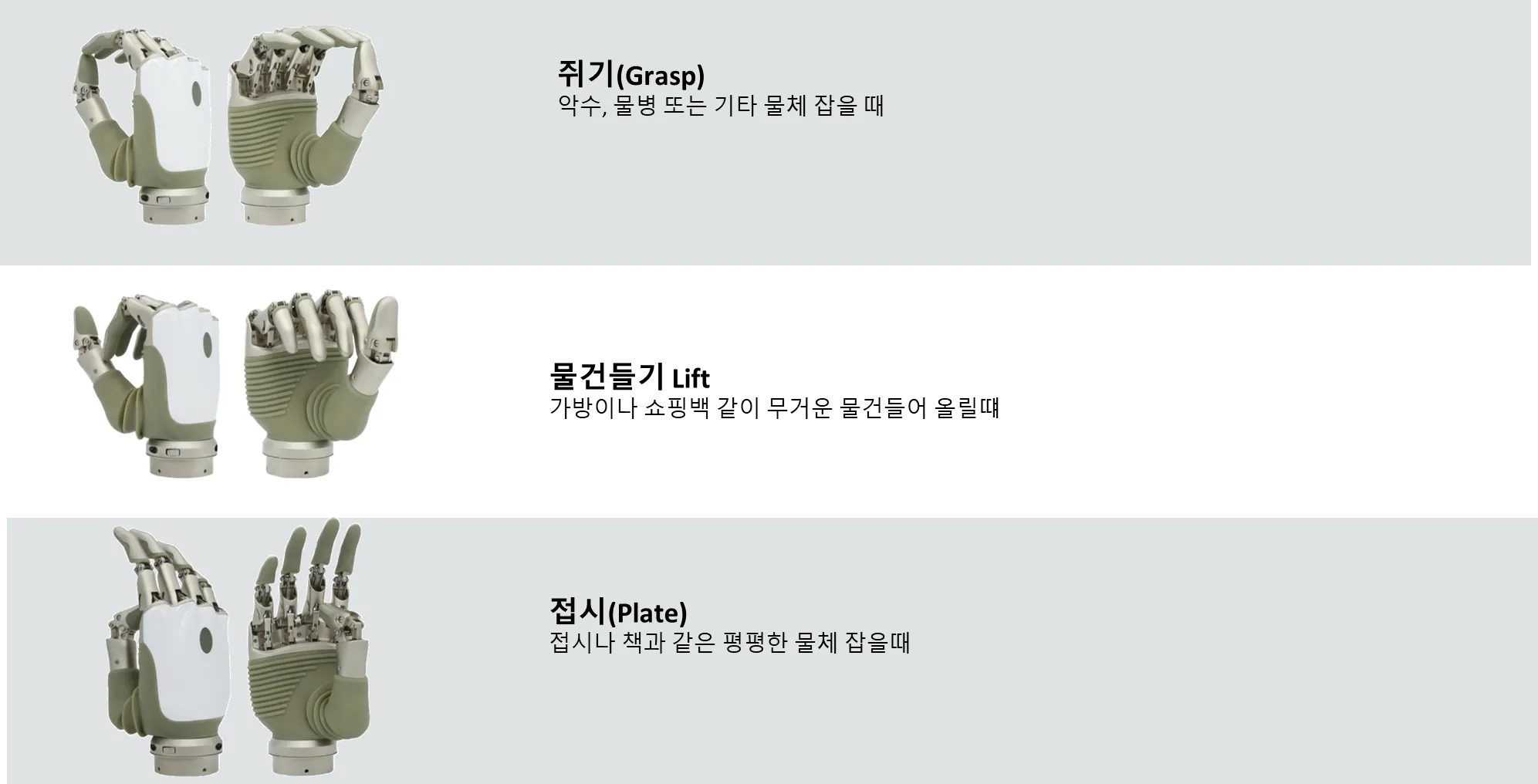

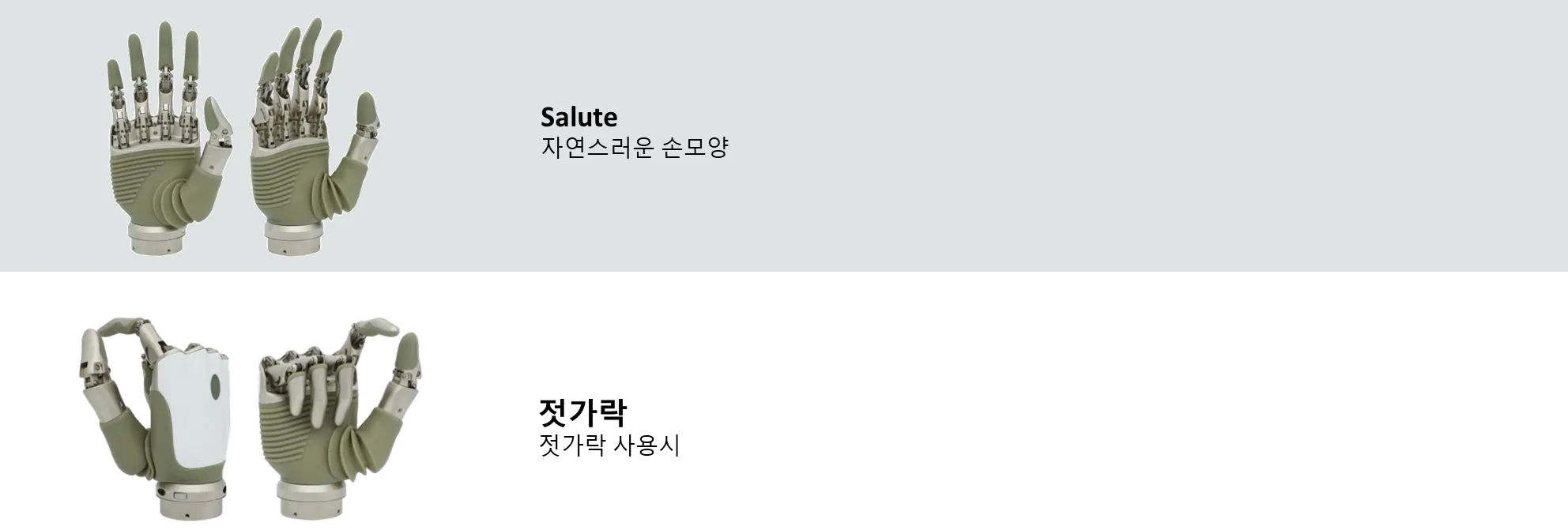

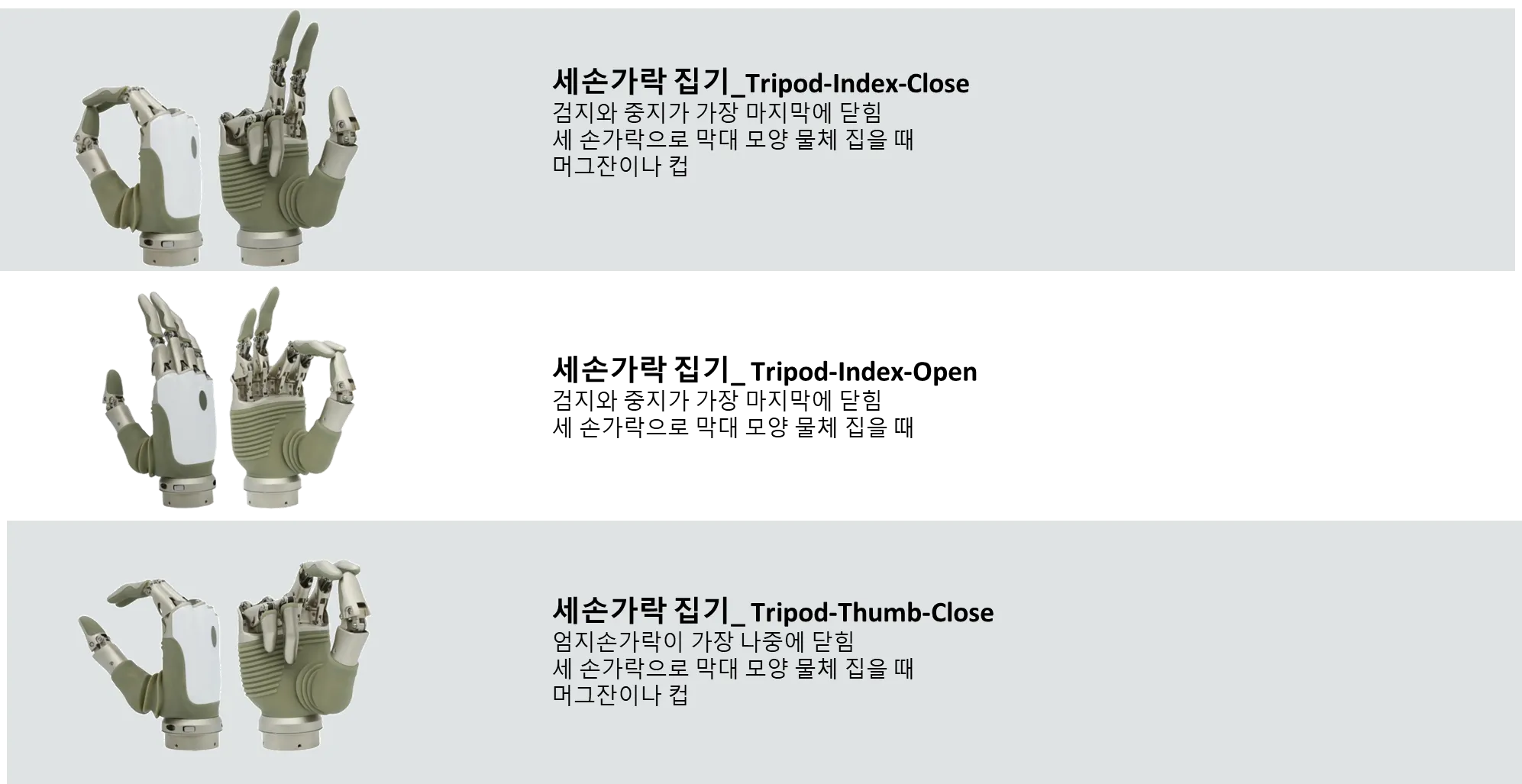

Up to 9 motions can be set (selectable from 27 motions)
Uses 2-channel EMG
Lower cost compared to conventional biomimetic artificial hands
Motion implementation through EMG measurement
Motion intent recognition and artificial hand control using AI algorithms
Motion control available through a dedicated app
EMG threshold adjustment available through the dedicated app
In the dedicated app, two modes are available, and three grip motions can be set for each mode
Mode switching is possible by pressing the button on the back of the hand
Manual wrist rotation available

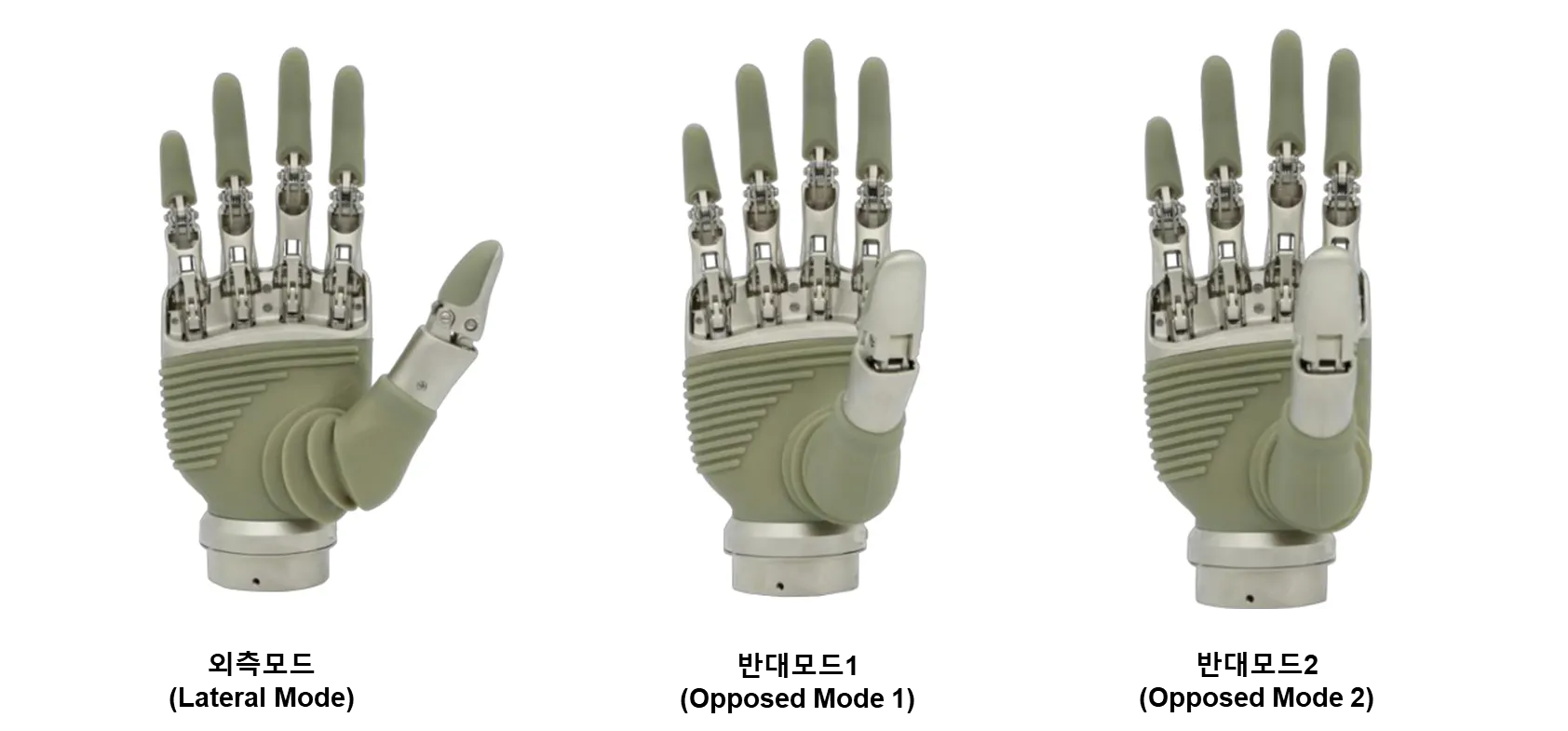

Thumb position

Lateral mode

Opposed mode 1

Opposed mode 2
