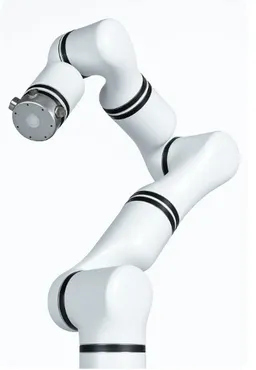

RObotic Arm(REALMAN)
Next-generation smart automation perfected through precision and flexibility.
We offer high-precision, high-efficiency collaborative robot solutions that can be utilized in both industrial sites and research environments. The REALMAN series is designed to work safely alongside humans, with intuitive control and adaptable task responsiveness. It is suitable for a wide range of applications including manufacturing, inspection, research, and education.
Key Technical Features
•

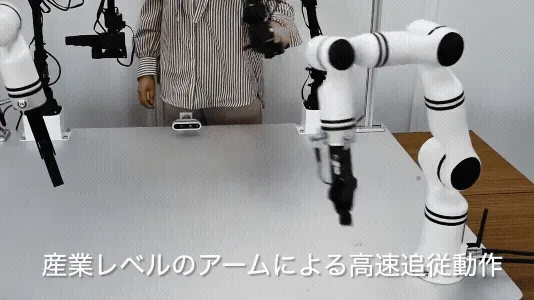

6-axis freedom control (6DOF) – Enables precise movements similar to a human arm.
•
Safe collaborative control system – Built-in collision detection and automatic deceleration.
•
Intuitive programming – Easy task setup via graphical interface.
•
Highly compatible interfaces – Works with a variety of end-effectors and industrial equipment.
•
AI & vision system integration capable – Supports robot perception and automated inspection setups.
Application Areas
•
Manufacturing — Automation of production lines and integrated quality control.
•
Logistics warehouses — Unified mobility, picking, and loading operations.
•
Medical & healthcare — Assistance and safe collaborative tasks in medical settings.
•
Service robotics — Intelligent automation for simple service roles (cafes, restaurants).
•
Education & research — Ideal for robotics and AI control practice.
•
Special industries — Supports environments requiring complex task combinations.

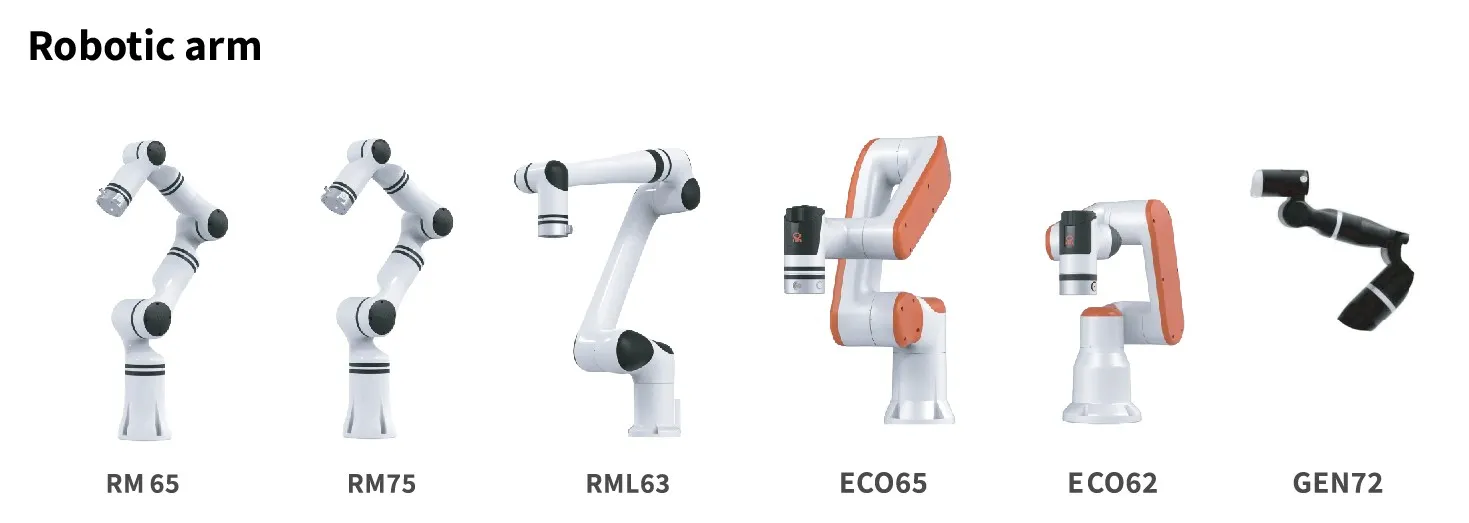

REALMAN Series Models & Specs
Model | Degrees of Freedom | Rated Payload | Max Payload | Weight | Repeatability | Reach |
RM65 | 6 | 5 kg | 9 kg | 7.2 kg | ±0.05 mm | 610 mm |
RM75 | 7 | 5 kg | 9 kg | 7.8 kg | ±0.05 mm | 610 mm |
RML63 | 6 | 3 kg | 5 kg | 10 kg | ±0.05 mm | 900 mm |
ECO65 | 6 | 5 kg | 9 kg | 7.8 kg | ±0.05 mm | 610 mm |
ECO62 | 6 | 1 kg | 2 kg | 3.3 kg | ±0.05 mm | 355 mm |
ECO63 | 6 | 3 kg | 5 kg | 9.5 kg | ±0.05 mm | 900 mm |
GEN72 | 7 | 2 kg | — | 6.6 kg | ±1 mm | 600 mm |
(Note: Numeric specs are directly transliterated from the original table.)

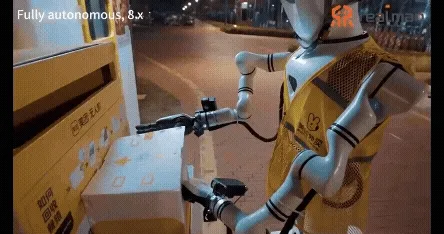

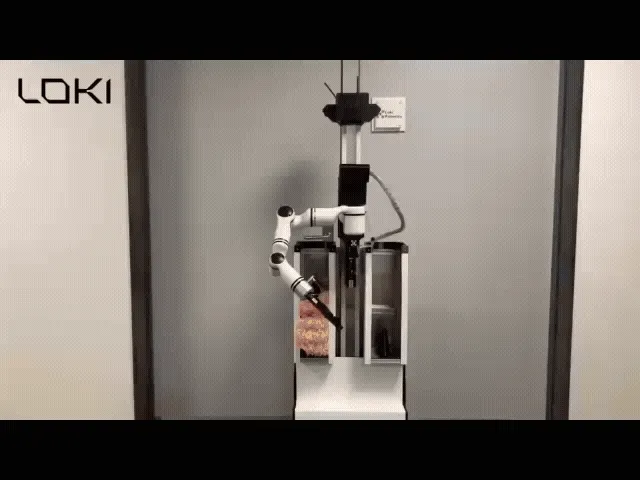

Compound Robot (Integrated Mobility + Task Automation)
The compound robot represents a next-generation solution combining mobility platforms (AMR), robotic arms, and AI functions. These robots can perform tasks while moving, enabling automation in scenarios that conventional systems cannot address, such as low-volume multi-product manufacturing, integrated transport and task workflows, and expanded support in service, medical, and educational fields.
Compound Robot Technical Highlights
•
Unified mobility + task execution — A single robot can move, operate, and carry simultaneously.
•
Broad industry applicability — Usable in manufacturing, logistics, healthcare, education, and AI research.
•
Collaborative safety design — Sensor-based collision detection and safety algorithms allow human-robot teamwork.
•
AI-driven intelligent operations — Combines vision, path optimization, force control, and object recognition.

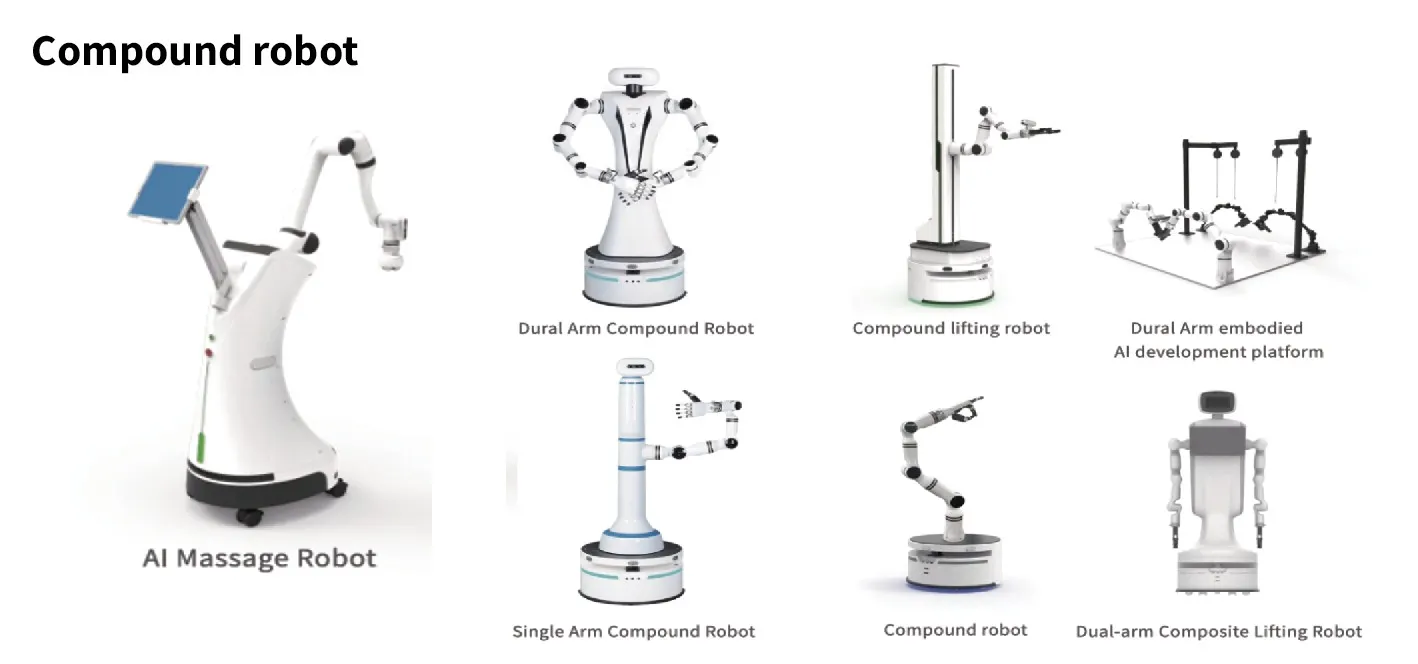

Compound Robot Models Example
Product | Number of Arms | Arm Payload | Mobile Platform | Lifting Capability | Vision / Sensing | Use Case |
AI Massage Robot | 1 | 2–3 kg |  | ✘ | 3D Vision + Pressure | Healthcare |

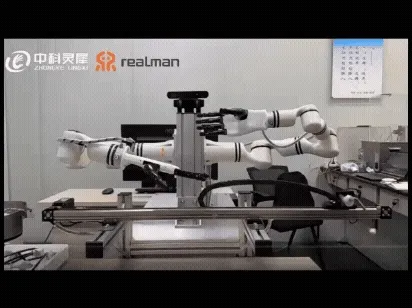

Dual Arm CR | 2 | 3–5 kg | | ✘ | LiDAR + RGBD | Dual-arm automation |
Compound Lifting Robot | 1 | 3–5 kg | | 10–20 kg | SLAM | Logistics & heavy payloads |
Embodied AI Platform | 2 | 0.5 kg | ✘ | ✘ | Depth Vision | Research & AI |
Single Arm CR | 1 | 5 kg | | ✘ | Vision + SLAM | Service automation |
Dual-arm Composite Lifting | 2 | 3–5 kg | | 10–20 kg | LiDAR | Industrial flagship |
