1. Product Overview
•
Product Name: HYBRIDEX
•
Slogan: Reconnect Daily Life
•
Developer: Refind Inc.
•

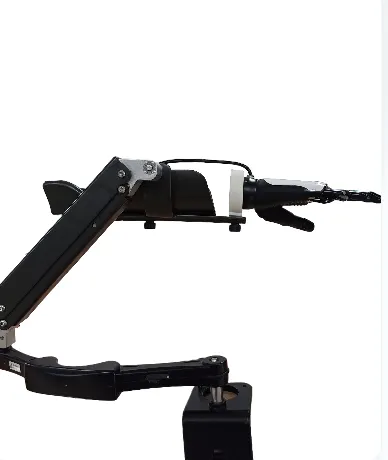

Definition: An intelligent hybrid upper-limb assistive robot that recognizes user intent to assist or replace hand and arm functions.
2. Key Features & Characteristics
•
Hybrid Mechanism
◦
Robotic Hand: Enables precise finger movements (grasping objects, typing, etc.).
◦
Arm Support: Integrates a mechanical support system to bear the arm's weight and assist muscle strength.
•
AI-based Control (Intent Recognition)
◦
EMG Sensors: Detect subtle signals generated by the user's residual muscles.
◦
AI Algorithm: Analyzes user intent (e.g., clenching, opening) in real-time to control the robot.
•
Sensory Feedback
◦
Embedded with Force Sensors and Tactile Sensors in the fingertips to detect object weight and gripping force.
•
Lightweight & Customized Design
◦
Uses lightweight materials (such as aluminum alloy) to allow for extended wear during daily activities.
◦
Customizable to fit the user's specific body measurements.
3. Expected Benefits
•
Return to Daily Life: Enables basic daily activities such as eating, brushing teeth, and lifting objects.
•
Return to Work: Assists in performing tasks that require precision and dexterity.
•
Rehabilitation Training: Encourages active movement to enhance rehabilitation effects.
4. Technical Specifications (Reference Only)(Detailed specifications may vary by model)
•
Degrees of Freedom (DoF): 5–6 DoF (Individual finger control available)
•
Sensors: Built-in high-precision EMG sensors and IMU (Inertial Measurement Unit)
•
Weight: Approx. 300g–500g (Hand unit, based on the lightweight model)
