Compact Collaborative Robot Arm Platform for Education, Research, and Development
The myCobot series is a compact collaborative robot (cobot) platform developed by Elephant Robotics. It is optimized for education, research, robotics development, and algorithm testing, rather than industrial automation.
With its compact size and intuitive control structure, it supports a wide range of users, from robotics beginners to R&D professionals.

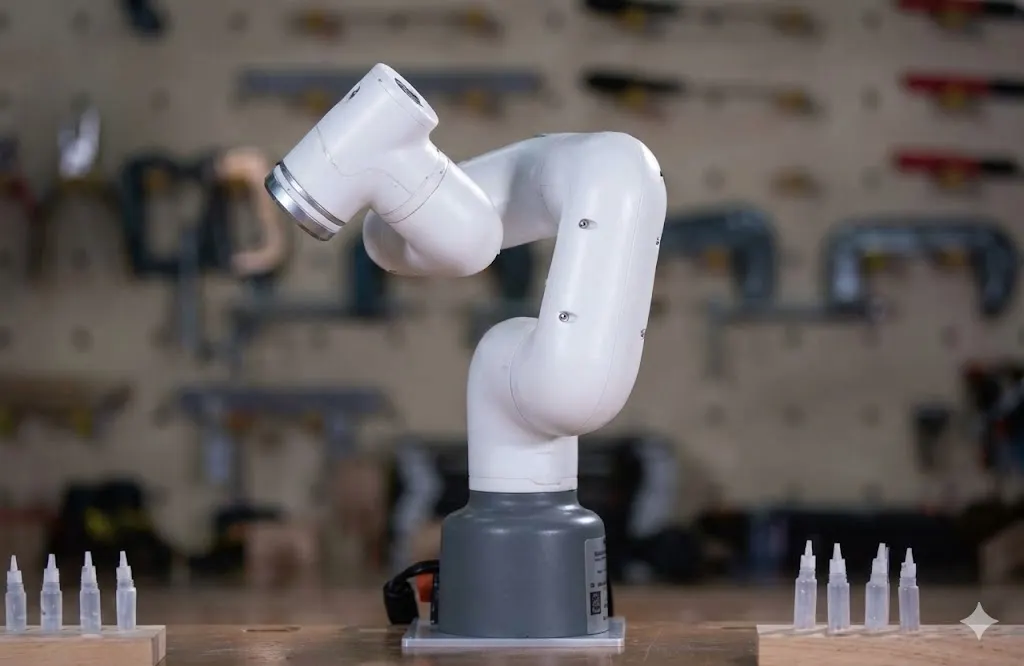

myCobot 280
Compact Educational Cobot for Robotics Beginners
The myCobot 280 is optimized for robotics education and basic research, featuring an ultra-compact design and easy installation.
Key Features
•
Ultra-compact 6-axis robotic arm
•
Light payload support
•
Ready for immediate desktop use
•
Affordable price point
Item | Specification |
Degrees of Freedom | 6-axis |
Reach | approx. 280 mm |
Payload | approx. 250 g |
Repeatability | approx. ±0.5 mm |
Actuation | Servo motors |
Control | Python / ROS |
Power Supply | DC adapter |
Installation | Desktop |
Typical Applications | Education, robotics training, basic research |
Industrial Use |  Not suitable |

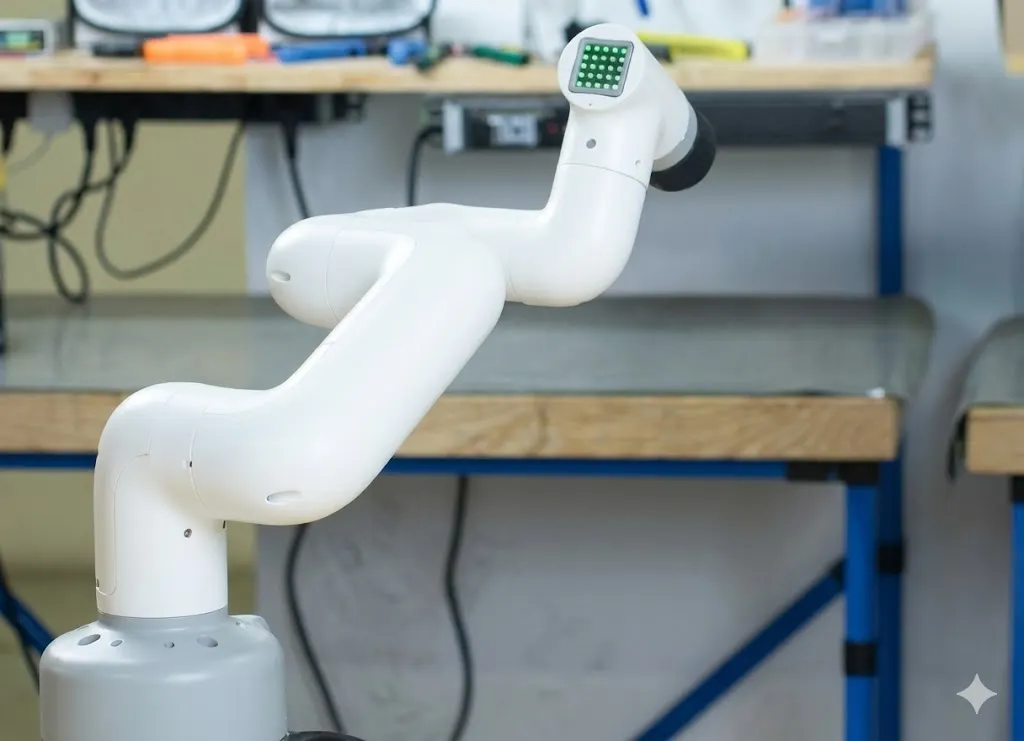

myCobot 320
The Standard Model Balancing Education and Research
The myCobot 320 offers an extended working radius and enhanced stability compared to the 280. It is designed to go beyond basic education, making it ideal for advanced R&D experiments.
Key Features
•
Retains 6-axis structure
•
Extended working radius
•
Stable repetitive motion
•
Supports various end-effector experiments
Item | Specification |
Degrees of Freedom | 6-axis |
Reach | approx. 320 mm |
Payload | approx. 500 g |
Repeatability | approx. ±0.5 mm |
Actuation | Servo motors |
Control | Python / ROS |
Power Supply | DC adapter |
Installation | Desktop |
Typical Applications | Education, research labs, algorithm testing |
Industrial Use | Not suitable |

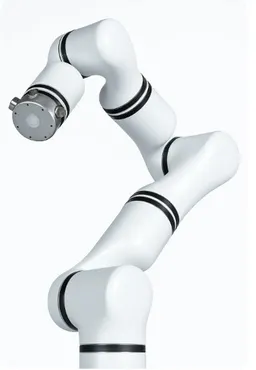

myCobot 630
High-End Compact Cobot Focused on R&D
Boasting the largest working radius and expandability in the myCobot series, the myCobot 630 is an optimized platform designed for research, development, and demonstrations.
Ideal For
•
Robotics laboratories
•
Cobot algorithm testing
•
Automation Proof of Concept (PoC)
Key Features
•
6-axis compact cobot structure
•
Wide working radius
•
Supports versatile control experiments
•
Perfect for demos and technical showcases
Item | Specification |
Degrees of Freedom | 6-axis |
Reach | approx. 630 mm |
Payload | approx. 1 kg |
Repeatability | approx. ±0.5 mm |
Actuation | Servo motors |
Control | Python / ROS |
Power Supply | External power supply |
Installation | Desktop / Workbench |
Typical Applications | Research, development, proof-of-concept, demos |
Industrial Use | Not suitable |
