Features
•
8-channel dry EMG
•
1 IMU
•
Acquisition of raw EMG signals (using dedicated dongle)
•
Raw IMU signals (using dedicated dongle)
•
Up to 16 motions distinguishable in the dedicated app
•
Various SDKs provided
•
Compatible with Arduino boards when using gForceJoint (sold separately)
Functions
•

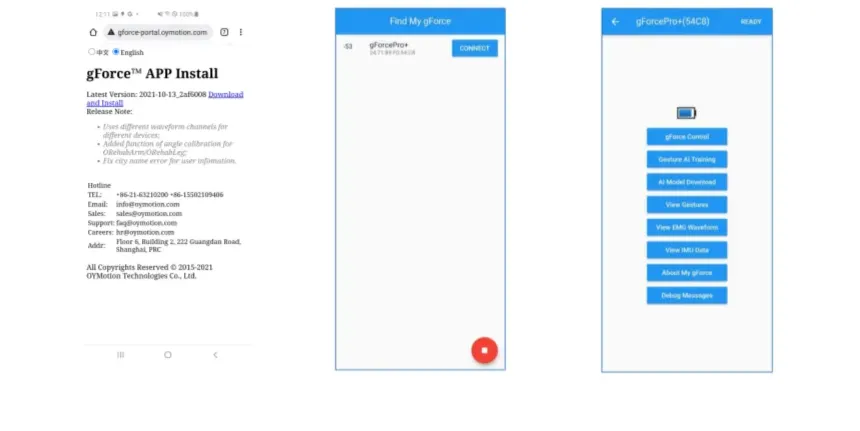

The dedicated app can be downloaded from http://gforce-portal.oymotion.com
•
When installing the app, the default language in the settings must be set to English for the app to be installed in English
•
The number of EMG channels to be used can be specified (up to 8)
•

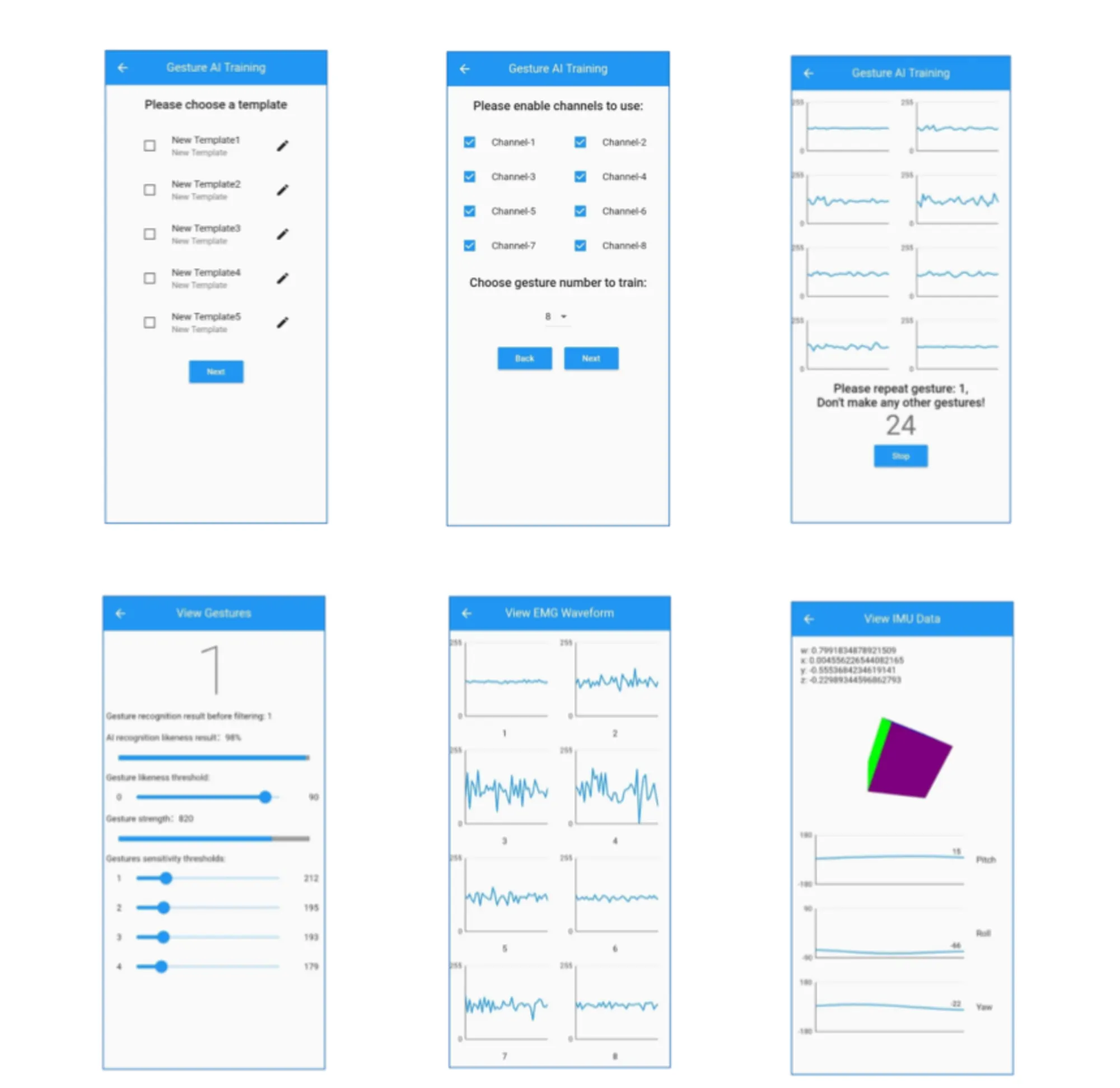

During motion training, one motion must be repeated for 30 seconds and repeated at least 5 times
•
After training, if pairing with some smartphones fails, the connection can be restored by restarting the app or turning the device off and on again
Others
•
Not waterproof
•
Possible skin marks after use
References
•
Standford University ARMLab
Download
