1. Product Overview
•

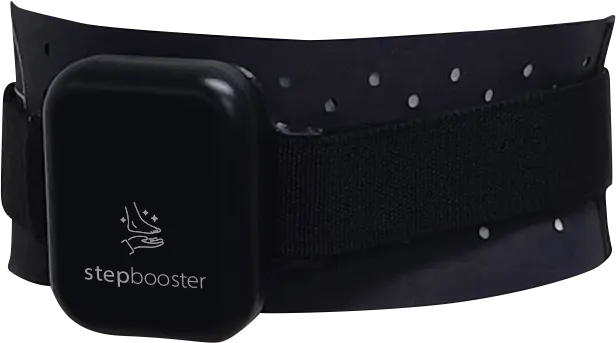

Product Name: Step Booster
•
Slogan: Walk with Confidence
•
Developer: Refind Inc.
•
Definition: A detachable, portable powered assist device that attaches to existing passive leg braces (AFO, KAFO, etc.) to provide walking assistance.
2. Key Features & Characteristics
•
Superior Scalability
◦
Features a modular system that allows attachment to various existing braces, including AFO (Ankle-Foot Orthosis), KAFO (Knee-Ankle-Foot Orthosis), HKAFO (Hip-Knee-Ankle-Foot Orthosis), and orthopedic shoes.
◦
Ambidextrous design allows use on either the left or right side without distinction.
•
AI Personalized Assistance
◦
AI analyzes the user's specific gait characteristics to calculate and provide the optimal assistive force required for each individual.
◦
Working Principle: Gait Identification → Calculation of Required Assistive Force → Provision of Assistance (Tendon-driven mechanism).
•
Portability & Lightweight Design
◦
Weight: Under 600g (excluding battery).
◦
Dimensions: 100 x 120 x 45 mm (W x L x H).
◦
The detachable design allows the device to be mounted only when needed, minimizing the burden on daily life.
•
Rationality (Cost-Effectiveness)
◦
Delivers walking assistance benefits at a significantly lower cost (approx. 2.5 million KRW) compared to expensive exoskeleton robots (over 100 million KRW) or competing products (tens of millions of KRW).
3. Clinically Proven Effects
•
Alleviation of Pathological Gait
◦
Verified improvement in various pathological gait patterns, including circumduction gait, foot drop, and abnormal knee flexion.
•
Improvement of Walking Function
◦
Timed Up and Go Test (TUGT): Completion time reduced by approx. 12.8%.
◦
10-Meter Walk Test (10MWT): Walking speed increased by approx. 7.4%.
◦
6-Minute Walk Test (6MWT): Walking distance increased by approx. 5.4%, and Physiological Cost Index (PCI) decreased by approx. 29.3%.
•
User Satisfaction
◦
Increased willingness to wear and frequency of use due to more natural gait, enhanced stability, and reduced fatigue.
4. Target Audience
•
Walk Again: Individuals with a strong determination to walk on their own two feet again (Early to mid-stage rehabilitation).
•
Better Movement: Users who feel frustrated by the restricted mobility of conventional braces.
•
Daily Freedom: Those seeking a more comfortable, natural, and safe walking experience (Mild gait impairment, hemiplegia, etc.).
5. Key Specifications Summary
•
Driving Method: Supports Foot Clearance using a Tendon-driven mechanism.
•
Operating Time: Over 4 hours of continuous use.
•
Materials: Aluminum case, Synthetic resin tendon.
•
Wearing Method: Worn on the pelvis with weight distribution via suspenders.
